| FIG | ITEM | SPEC. | Voltage (V) | Wattage (W) | Luminous Flux (Lm) | Average Life (H) | Base |

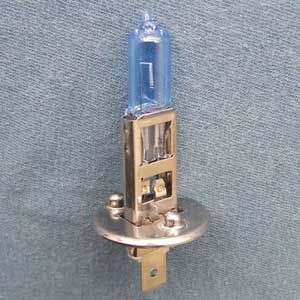

| ZC1 | H1 | 12V35W | 13.2 | MAX40 | 800±15% | 500 | P14.5S |
| H1 | 12V55W | 13.2 | MAX68 | 1550±15% | 500 | P14.5S |
| H1 | 12V80W | 13.2 | MAX80 | 1750±15% | 500 | P14.5S |
| H1 | 12V100W | 13.2 | MAX100 | 2000±15% | 500 | P14.5S |
| H1 | 24V55W | 28.0 | MAX68 | 1650±15% | 500 | P14.5S |
| H1 | 24V70W | 28.0 | MAX84 | 1900±15% | 500 | P14.5S |
| H1 | 24V100W | 28.0 | MAX100 | 2200±15% | 500 | P14.5S |
